第一章 FB系列：铁氧体贴片磁珠滤波器

Chapter 1 FB Series:  Ferrite chip bead filter

1 类型概要Type Overview

1.1按安装方式分类By Mounting Style

●插件磁珠 Through-Hole Beads(THB)

●贴片磁珠 Surface-Mount Beads(SMB)

1.2按磁珠数量分类By Bead Quantity

●单珠 Single Bead

●双珠 Dual Bead

1.3 按内孔数量分类 By Inner Hole Quantity

●单孔 Single Hole(RH)

●双孔 Double Hole(RID)

●五孔Five Hole(R5H)

●六孔 Six Hole(R6H)

1.4 按编带方式分类By Tape Packaging

●轴向编带 Axial/Horizontal Packaging

●径向编带 Radial/Vertical Packaging

●片式编带 Chip-Style Packaging

2 特点Features

2.1 抑制高频噪音和尖峰干扰Suppresses high-frequency noise and spike interference

2.2 低成本、高效能滤波器Low-cost, high-performance noise filter

2.3 提供轴向、径向编带，便于自动插件作业Axial and radial taped options available for automatic insertion

2.4 可吸收超高频信号Absorbs UHF signals

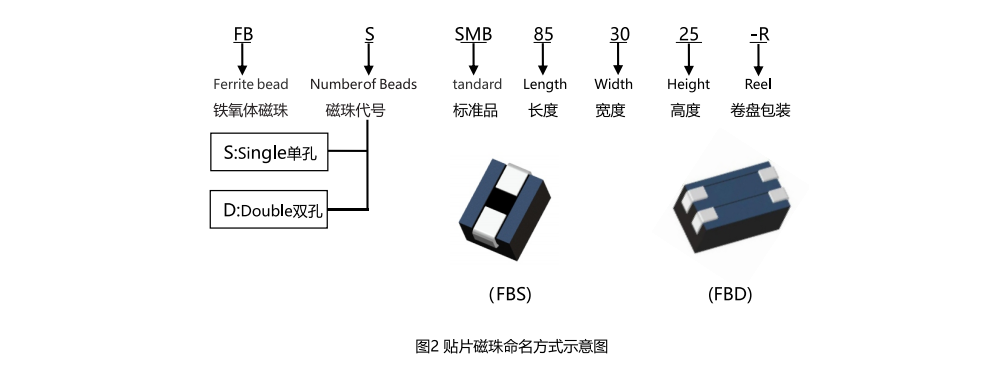

3 命名方式Explanation of Part Numbers

3.1 贴片磁珠 Surface-mount Bead SMB

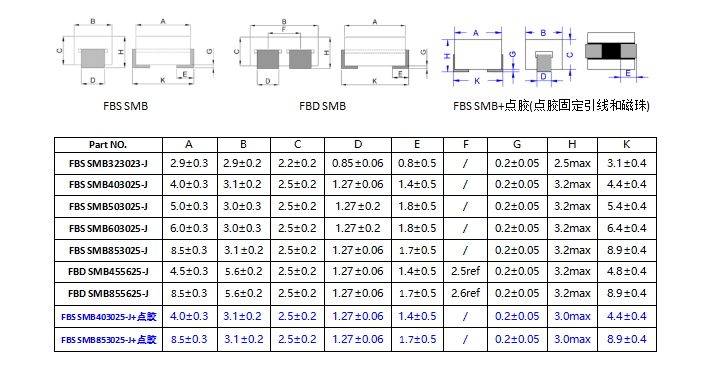

4 形状与尺寸Shape and Dimensions in mm

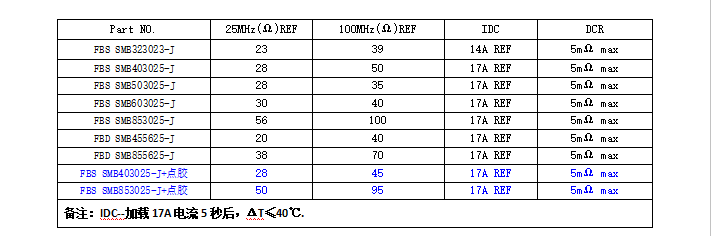

5 电器特性Electrical characteristics
